An IoC approach to Auth0 Configuration Management
by Kevin Lin
Mastering Auth0 with Terraform
1. Introduction
> "The best way to learn is to teach."
- My current role in project, joy from learnings from technical work
- The best way of learning is by teaching
- This talk is a pure tech take, not in depth, but practical
- Anyone with basis DevOps knowledge can easily grasp it, and can use the code sample to apply their projects
- Problem/Solution - Demo - Learnings
[fit] 1. Introduction
https://www.terraform.io/
- A tool for infrastructure as code (IaC) that define and manage cloud infrastructure in a declarative way
- Allows users to describe the desired state of their infrastructure in code using a high-level language (HCL)
- Helps make infrastructure management more efficient, reliable, and consistent
- Version-control your infrastructure
- Collaborate with others
- Automate your infrastructure management
- Infrastructure as Code (IaC) is a practice of managing and provisioning infrastructure through code instead of manual processes
- IaC allows for greater consistency, repeatability, and scalability in managing infrastructure, reducing the risk of errors caused by manual configuration.
- Common tools include Terraform, CloudFormation, and Ansible.
Terraform
https://auth0.com/
- Cloud-based identity platform for authentication and authorization services
- Add secure authentication and authorization capabilities to web, mobile, and legacy applications
- Offers customizable login pages, advanced features such as role-based access control and SSO, and integrations with third-party services
- Provides developer-friendly tools and SDKs for easy integration with different programming languages and frameworks, and offers built-in security features.
Auth0
2. The Problem
How Auth0 should not be managed
- Share a real project story
- Common problems and struggles with managing Auth0 configurations
- The importance of repeatability and consistency in managing Auth0 configurations
- Potential security risks and operational issues with manual or ad hoc management approaches
[fit] 2. The Problem
😀
At the beginning, everything is simple and easy!
Patient App | Doctor App | Admin App | :-----------:|:----------:|:---------:|
[fit] 😀
SIT | SIT | SIT
| |😅
Then comes UAT, which doubles the configurations ...
Patient App | Doctor App | Admin App | :----------:|:----------:|:---------:| SIT | SIT | SIT UAT | UAT | UAT
[fit] 😅
| |😰
And then, Production need to be setup to go life!
Best news: we don't have admin access this time!!
Patient App | Doctor App | Admin App | :----------:|:----------:|:---------:| SIT | SIT | SIT UAT | UAT | UAT PROD | PROD | PROD
- You can see the problems here:
- Every config change will need to be applied 3 times
- As 10+ people have admin access, no way to track what was changes, who made the change
[fit] 😰
😡
Lastly, we need to support Staging!!!
Patient App | Doctor App | Admin App | :----------:|:----------:|:---------:| SIT | SIT | SIT UAT | UAT | UAT STG | STG | STG PROD | PROD | PROD
[fit] 😡
3. The Solution
And how to start in 3 simple steps
- How Terraform can be used to manage Auth0 configurations effectively
- Key benefits of using Terraform with Auth0, including improved consistency, security, and scalability
- A detailed explanation of how Terraform can be used to manage Auth0 configurations
[fit] 3. The Solution
- Create a Machine to Machine (M2M) Application in Auth0 with the right permissions
- Setting Auth0 environment variables
- These commands connects the TF CLI on your local to the target Auth0 tenant
#1 Connect to Auth0 Management API
export AUTH0_DOMAIN=***********
export AUTH0_CLIENT_ID=***********
export AUTH0_CLIENT_SECRET=***********Configure the Provider in main.tf
#2 Configure your Terraform module
terraform {
required_providers {
auth0 = {
source = "auth0/auth0"
version = "~> 0.43.0"
}
}
}
provider "auth0" {}Run the command from the module folder:
And you are ready to go!
#3 Initialise your Terraform module
terraform init
Auth0 Resource in Terraform - Client
resource "auth0_client" "admin_app" {
allowed_clients = []
allowed_logout_urls = [...]
allowed_origins = []
app_type = "spa"
callbacks = [...]
client_aliases = []
client_metadata = {}
cross_origin_auth = false
custom_login_page_on = true
grant_types = [
"authorization_code",
"refresh_token",
"password",
"http://auth0.com/oauth/grant-type/password-realm",
]
is_first_party = true
is_token_endpoint_ip_header_trusted = false
name = "Admin App"
oidc_conformant = true
sso = false
sso_disabled = false
token_endpoint_auth_method = "none"
web_origins = [...]
jwt_configuration {
alg = "RS256"
lifetime_in_seconds = 36000
scopes = {}
secret_encoded = false
}
refresh_token {
...
}
}Auth0 Resource in Terraform - SMS Connection
resource "auth0_connection" "sms" {
is_domain_connection = false
metadata = {}
name = "sms"
strategy = "sms"
options {
allowed_audiences = []
api_enable_users = false
auth_params = {}
brute_force_protection = true
...
from = "+12184223634"
import_mode = false
ips = []
name = "sms"
non_persistent_attrs = []
pkce_enabled = false
requires_username = false
scopes = []
scripts = {}
sign_saml_request = false
strategy_version = 0
syntax = "md_with_macros"
template = <<-EOT
Your verification code is: @@password@@
EOT
twilio_sid = "***********"
twilio_token = "***********"
...
totp {
length = 6
time_step = 180
}
}
}Auth0 Resource in Terraform - Email Provider
resource "auth0_email" "smtp_email_provider" {
default_from_address = "support@nextgen.com"
enabled = true
name = "smtp"
credentials {
smtp_host = "email-smtp.ap-southeast-1.amazonaws.com"
smtp_port = 587
smtp_user = "***********"
smtp_pass = "***********"
}
}
resource "auth0_connection_client" "sms_conn_patient_app_assoc" {
depends_on = [auth0_connection.sms, auth0_client.native_app]
connection_id = auth0_connection.sms.id
client_id = auth0_client.native_app.id
}4. Code Demo##
https://github.com/kevinlin/auth0-configuration-demo
- Plan to start on the next big thing, name it NextGen
- Has both mobile and web app, support SMS and email OTP
[fit] 4. Code Demo##
5. Lessons Learned
Best practices to master Auth0 configuration
[fit] 5. Lessons Learned

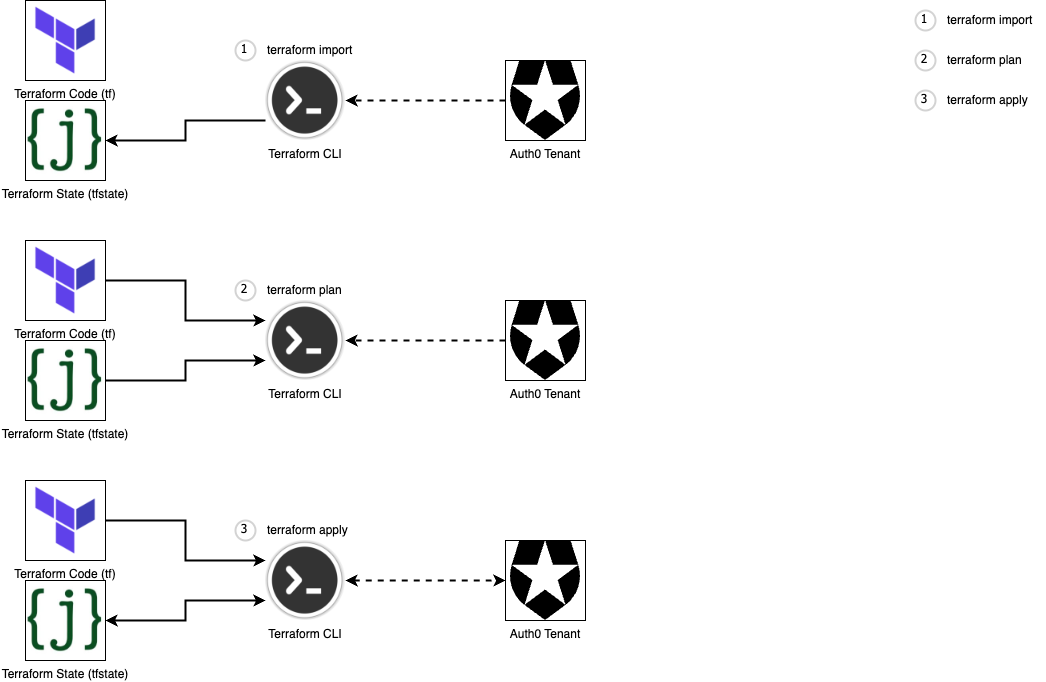

- Snapshot of Auth0 configurations
- Contains UUIDs that enables TF to retrieve the latest and compare
- Output any resource object from state in standard HCL format
Store Terraform state files as code
terraform import auth0_client.web_client AaiyAPdpYdesoKnqjj8HJqRn4T5titww
terraform state show auth0_client.web_client
Import Existing Configurations from Auth0 first
Together with TF variables, you manage multiple environments with the same TF module:
- Allows you to do command substitution
Use TF Workspace to manage multiple environments
terraform workspace list
terraform workspace select sit
terraform workspace new uat
terraform plan -var-file=$(terraform workspace show).tfvars
terraform apply -var-file=$(terraform workspace show).tfvars- https://github.com/mozilla/sops
- Open source tool that helps teams manage secrets securely
- Supports various encryption formats and cloud providers
- terraform-sops - A TF plugin for using files encrypted with sops
Terraform doesn't provide an official solution for encryption gpg --full-generate-key gpg --list-keys gpg --armor --output sops_key.asc --export kevin.lin@zuhlke.com gpg --fingerprint export SOPSPGPFP="BE5F 7B02 7354 784A CBDD DBA8 8B77 1DA9 D18D FE84"
Encrypt Sensitive Data
- Go beyond Cloud providers
- Any API service that can be fully managed by RESTful API can be managed by TF, technically
- Okta, Kong gateway, ForgeRock Cloud
Possibilities to apply the same approach
Q&A + Invitation
- Open floor for attendees to ask questions about the presentation and topics discussed
- Opportunity for attendees to share their experiences with Terraform and Auth0
- Invitation to continue the conversation with the speaker after the session
- Looking forward to your experience on applying the learnings to real client projects
- Thank you to the attendees for their time and attention!
